A Practical Guide to Packaging Printing Processes and Color Effects Across Materials

A Practical Guide to Packaging Printing Processes and Color Effects Across Materials

Jan 17, 2026

Packaging printing is often treated as a single topic, yet in commercial practice it involves multiple technical layers that must work together to deliver the desired final result. In many projects, terms like printing processes, color systems, and surface finishing are used interchangeably, which can lead to misunderstandings in feasibility, quality control, and cost estimation.


This guide clarifies these distinctions and provides a material‑based overview of how different printing decisions function across metal, plastic, and paperboard packaging.

1. Printing Processes Across Materials



Packaging printing processes determine how ink is transferred onto the substrate, and they vary significantly depending on the material, production volume, and durability requirements. Below is a summary of common printing processes and their material applicability.

Printing Process Applicable Packaging Materials Common Packaging Forms Process Characteristics
Offset Printing White‑coated paperboard, greyboard, coated paper Folding cartons, retail boxes High resolution and color fidelity; suitable for detailed imagery; optimal on smooth paper surfaces
Gravure Printing PET, OPP, CPP films, aluminum foil, flexible laminates Flexible packaging, labels, sleeves Excellent ink density and saturation; cost‑effective at high volumes; subtle detail less than offset in some cases
Flexographic Printing Corrugated board, kraft paper, plastic films Corrugated boxes, plastic bags, labels Fast, versatile, compatible with many inks; ideal for continuous registration on varied substrates
Screen Printing Steel tinplate, aluminum, hard plastics, glass Metal cans, decorative boxes, rigid containers Thick ink layers and strong adhesion; effective for metallic and textured surfaces
Digital Printing Paperboard, coated stocks, some plastics Short runs, customized packaging No plates required; flexible and quick; higher per‑unit ink cost
Pad Printing Metal, plastic, curved surfaces Caps, lids, small parts Transfers into hard‑to‑reach or irregular zones
Heat Transfer Printing Plastic, metal Labels, decorative finishes Transfers pattern via heat; limited abrasion resistance
Inkjet Printing Paperboard, plastics, metal coatings Dates, codes, variable data Excellent for variable information; not decorative per se

Professional Notes (Printing Processes):

  1. Printing processes define technical feasibility and cost impact but do not automatically dictate final color quality.

  2. Screen printing remains a strong choice for metal surfaces due to ink thickness and adherence.

  3. Gravure excels in consistent, high‑speed runs but requires economies of scale.

2. Common Color Systems for Packaging



Color systems determine how colors are defined, mixed, and reproduced. Choice of color system depends on substrate characteristics, brand color requirements, and visual goals.

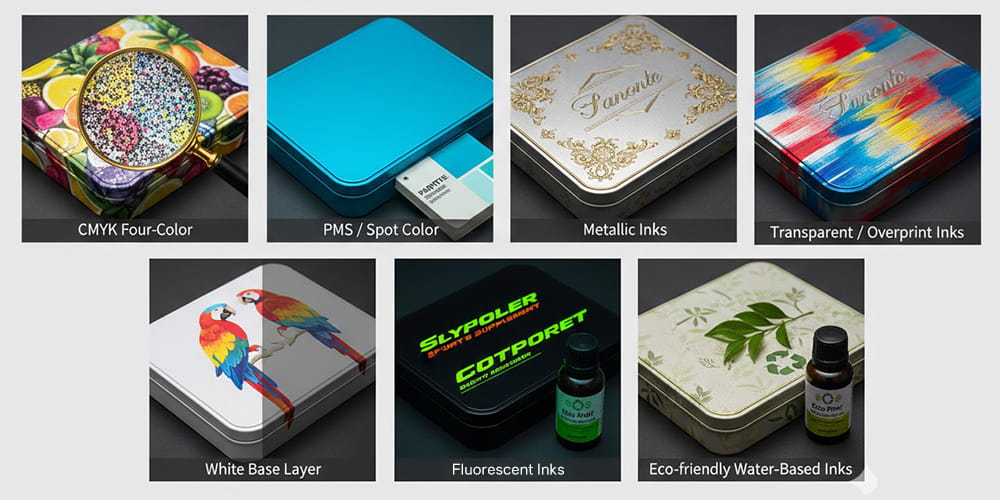

Color System Applicable Materials Key Characteristics
CMYK Four‑Color Paperboard, plastic films, coated surfaces Standard for reproducing full‑color images; quality depends on press profile
PMS / Spot Color Paperboard, metal, plastics Precise, consistent brand colors; best for logo and solid colors
Metallic Inks Metal, special decorative stocks Adds shine and luster; suited for premium packaging
Transparent / Overprint Inks Metal, plastics Enhances depth by letting substrate show through
White Base Layer Metal, dark plastics Ensures top colors appear vivid on non‑white substrates
Fluorescent Inks Paperboard, plastics High visibility; often used for attention‑grabbing graphics
Eco‑friendly Water‑Based Inks Paperboard, corrugated board Improved environmental profile; sometimes lower saturation

Professional Notes (Color Systems):

  • Color systems should be chosen based on both visual goals and substrate behavior.

  • For metallic substrates, transparent and white‑base strategies may deliver more expected results than simple CMYK mixing.

  • Brand color consistency often requires spot color systems irrespective of substrate.

3. Surface Finishing and Surface Effects



Surface finishing determines how printed packages look and feel after printing. These effects influence perceived quality and functional performance.

Surface Effect Applicable Materials Effect Characteristics

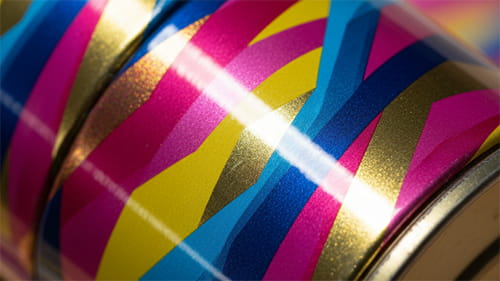

Gloss Varnish Paperboard, metal, plastics High shine and visual impact; enhances color intensity
Matte / Frosted Finish Paperboard, metal, plastics Soft, low‑reflection finish; perceived as premium

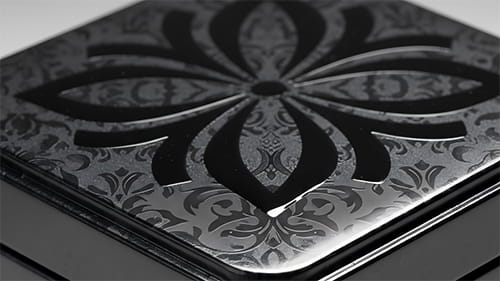

Spot UV / Selective Varnish Paperboard, metal Enhances specific areas for contrast

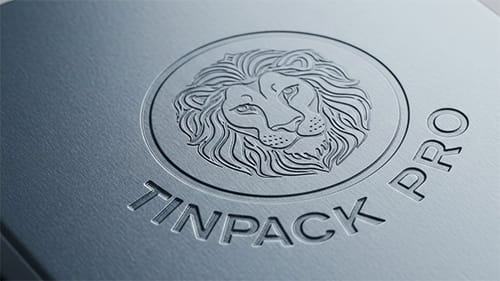

Embossing / Debossing Paperboard, tinplate Creates tactile depth; strengthens brand cues
Brushed Finish Aluminum, steel Distinct metal grain effect; industrial aesthetics
Wrinkle / Specialty Coatings Metal Adds functional texture or anti‑slip feel
Film Lamination (Gloss/Matte) Paperboard Protective layer that enhances durability
Food‑Grade Internal Coatings Metal packaging Prevents corrosion and contamination in food use

Professional Notes (Surface Effects):

  • Surface effects should be coordinated with material capabilities; e.g., embossing on metal demands distinct tooling versus paperboard.

  • Matte and frosted finishes can reduce perceived color contrast and must be balanced with underlying color systems.

4. Integrating Printing, Color, and Surface for Effective Packaging



Rather than viewing printing processes, color systems, and surface effects as isolated choices, they function as layers in a coordinated system. Each layer influences not only aesthetics but also production viability and cost.

  • Paperboard packaging typically emphasizes color fidelity and cost efficiency, aligning well with offset and digital printing paired with robust color management.

  • Flexible films prioritize speed, durability, and adhesion—making flexo and gravure popular choices.

  • Metal packaging, including tinplate and aluminum, demands ink adhesion and surface handling that often favors screen printing and specialized coatings.



By understanding these layers, designers and manufacturers can reduce common production issues and deliver consistent, high‑quality results.

5. References & Citations



For further authoritative context and technical background, consider the following:
