Color Reproduction Challenges and Solutions in Tinplate Printing

Success in plate-making and printing for tinplate packaging is ultimately judged by whether the printed piece faithfully reproduces the original artwork—retaining its colour, texture, and artistic intent. In tinplate colour printing, common quality failures include: loss of highlight detail, abrupt jumps in mid-tones, muddy or blurred dark areas. These defects result in poor definition, lacking three-dimensionality, colour distortion, and serious colour deviation.

Beyond human or operator variability, key objective causes include the adaptability of the metal substrate itself, and the compatibility between plate-making and the tinplate. This article explores how to reduce the variable factors in plate-making and printing that impair colour reproduction on tinplate.

Analysis of Major Variable Factors in Reproduction

1. The Original Artwork (Print-Ready Master)

Artwork submitted for tinplate packaging falls into two categories: tonal (continuous‐tone) originals and line‐drawing originals. In aerosol-can packaging today, although many designs still use line-drawings, increasing numbers now favour tonal artwork as the primary choice. While line-drawings tend to use spot-colour printing (making genuine reproduction more straightforward), tonal originals typically rely on full-colour (CMYK) reproduction, which places higher demands on design, plate-making and printing. If one emphasises artistic effect without regard for plate-making or printing adaptability, then faithful reproduction becomes more difficult.

Colour reproduction is achieved via halftone dot structures: halftone dots are the basic “particles” of colour image reproduction and must be accurately replicated if the original artwork’s colour is to be realised. In tinplate printing, the chief cause of tonal reproduction deviation is dot gain (expansion) or dot shift (misregistration/sliding), which leads to increased dot area; since each colour plate contributes different amounts of ink in the expanded area, this causes blurred tonal transitions and poor reproduction.

2. Why Tone Doesn’t Faithfully Reproduce

• Different ink-sequence (printing order) can affect colour reproduction. Even when using the same set of plates, if colour order differs the finished print result differs. Tinplate substrate differs from paper: the way proofs on paper are made vs. the way tinplate printing reproduces colour is different; ink hue and gray-scale behave differently on tinplate, so achieving perfect equivalence is impossible.

• Influence of the curing (heat-fixing) process of tinplate inks. Baking temperature, duration of curing process substantially affect print quality: under-curing leads to weak adhesion and poor processing performance; over-curing makes the film layer hard and brittle, blacks turn gray or dark, contrast falls, and colours lose vividness.

• Effect of different coating/varnishes (substrate finish). Given identical conditions, using different varnishes yields different reproduction results: the better the flow of the coating, the better the print effect.

Practical Approaches to Achieve Faithful Colour Reproduction

Selecting the right artwork suited to the printing equipment and technical level is the key starting condition. Based on tinplate-printing’s process features and ink characteristics, defining the colour-separation (plate-making) standard and producing plates compatible with printing is the essential pre-condition for true reproduction.

Plate-making & printing practices

1. Choose, where possible, a process using three-colours (CMY) or three-colours plus spot-colours, reducing the number of times spot-printing is used. This avoids multiple print passes that may scratch the tinplate surface, cause greying or darkening of colours, reduce registration accuracy in multi-pass printing and save raw-material consumption.

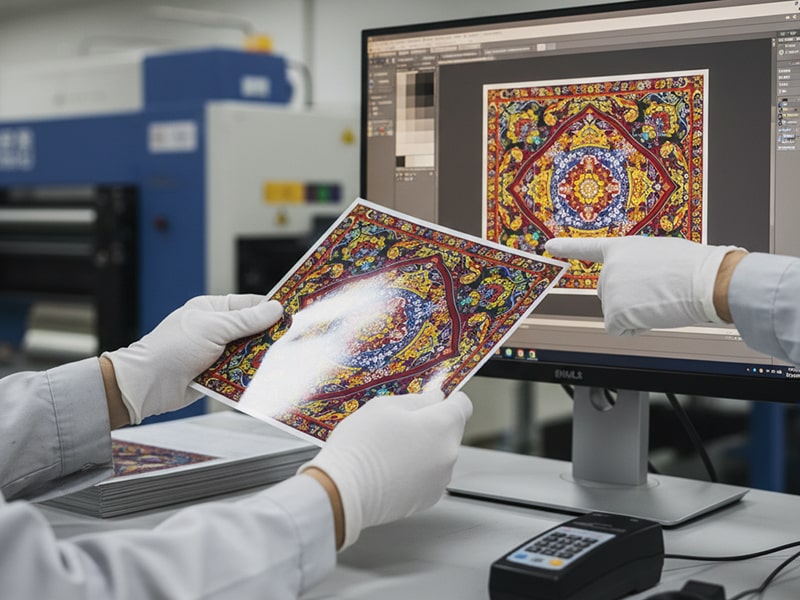

2. Proofing is the bridge between plate-making and printing. When conditions allow, use coated tinplate sheets identical to the press material, with the same inks and process, so the sample has greater reference and guidance value for production.

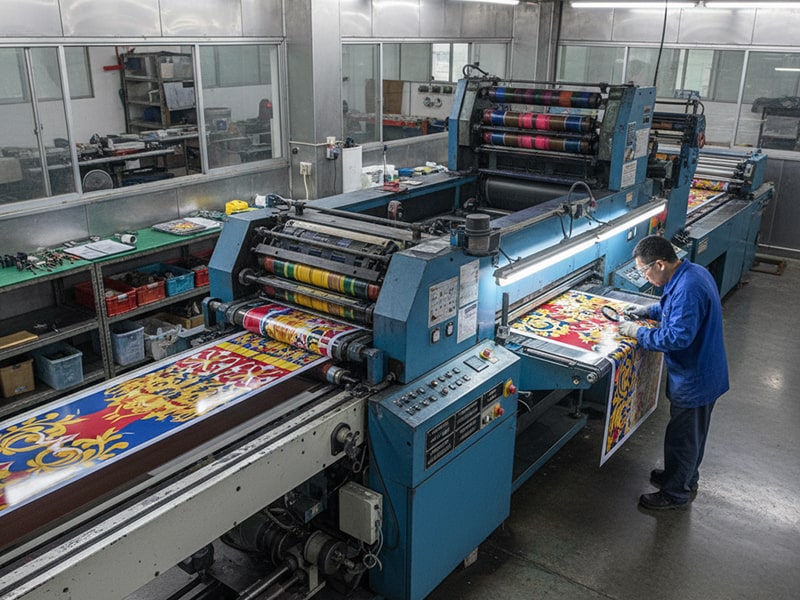

3. Choose the proper printing process based on the artwork and equipment:
    (1) Choose ink-sequence based on proportion of halftone dots. Typically the colour with the smallest dot area is printed first; this reduces wet-in-wet trapping deformation and colour mixing.
    (2) Choose ink-sequence based on size of image/text area. Usually the plate with the smallest image area prints first; then a plate with larger dot area prints second to reduce double-printing misregistration or shadowing. From the perspective of reducing ink “skinning” (excess surface layer), place large-area solid backgrounds in the second sequence — this uses the first sequence to clean some debris on tinplate surface.
    (3) Choose ink-sequence based on visual properties of the image: for example, print blue (‘cyan’) first; for cool-toned images, separate yellow and cyan into different groups and ensure cyan prints late in the second group; when flat-screen and solid backgrounds overlap, print the flat-screen first, then the solid; black text should be printed last; dark solid backgrounds over light solid backgrounds should have the darker layer printed later (and not in the same colour group).

4. Control the correct ink amount according to the artwork’s characteristics:
    (1) Choose ink colours carefully, avoiding complementary-colour conflicts: e.g., when printing early-spring foliage scenes, choose light yellow so printed leaves appear fresh tender green; if deep yellow is used, the yellow + black/grey will go toward red-component addition (red is the complement of green), so printed leaves appear burnt blackish, dull, not bright.
    (2) Whether the ink-layer thickness is properly saturated is a critical factor for faithful reproduction, especially vividness. Controlling the ink quantity of the base colour (first colour) is extremely important. If the base colour ink quantity is reduced, then later colour inks must be reduced to approximate hue, resulting in old-looking, grey-flat prints. Conversely, if the base colour ink-layer is too thick, later inks also become thick; even if colour distinguishes, flat or muddy large areas result, tonal separation is unclear, and the print appears heavy, dense, not vivid. Generally speaking, to achieve vivid colours, ink must be printed sufficiently; only then can subsequent plates print fully.

Of course, many other factors—such as operator skill, work environment—also influence print-colour reproduction; above is a modest discussion of the plate-making & printing adaptability in tinplate printing.

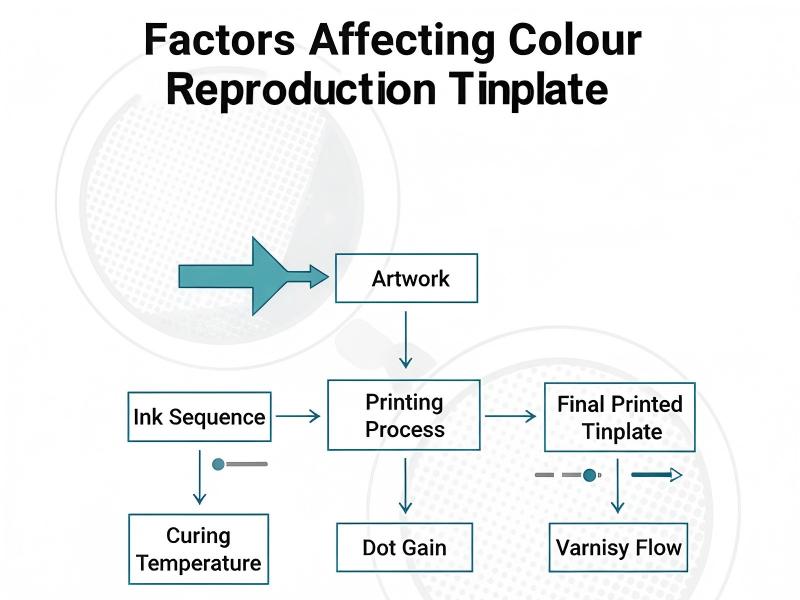

Table: Key Variable Factors & Their Impact on Tinplate Colour Reproduction

(Source: adapted from industry technical references)

Manufacturers’ Perspective: Industry Insight from Tinplate Packaging Producers

From the standpoint of a tinplate packaging manufacturer specialising in custom-printed tin boxes, the interplay between artwork design, plate-making, and printing must be managed as an integrated workflow rather than isolated steps. Key take-aways:

• Design for Print-Adaptation: When brands aim for premium tin boxes (for food, cosmetics, gifts), artwork often emphasises photographic detail and subtle gradients. In these cases, early consultation is needed: designers must be aware of tinplate’s unique quirks (metal substrate reflectivity, varnish effects, dot-gain risks) and specify approved colour-tolerances and plate-making profiles accordingly.

• Standardise Proofing Materials: We recommend proofing on the exact tinplate material and varnish combination that will be used in production. Without this, a paper-proof or coated-paper proof may mislead about how colours will appear on tinplate (as substrate and ink absorption differ).

• Focus on Equipment & Environment: In production of printed tin-boxes, equipment calibration (ink ducts, rollers, registration system) and environment (temperature/humidity in the press room) are equally critical. Even well-prepared plates will yield unsatisfactory colour if ink drying is inconsistent or dot gain runs unchecked.

• Communication with B2B Clients: For overseas brand buyers sourcing custom tin boxes, explain that perfect “match to artwork” is not automatic on tinplate—metal behaves differently than paper, and slight colour variation is to be expected. Sharing process-control specifications (e.g., ΔE tolerance ≤5 on solid colour) fosters trust and clearer expectations.

In short: for B2B buyers of custom tin packaging, working with a packaging-manufacturer that treats plate-making, printing and proofing as a unified system will yield higher fidelity colour outcomes, lower waste, and stronger brand presentation.
